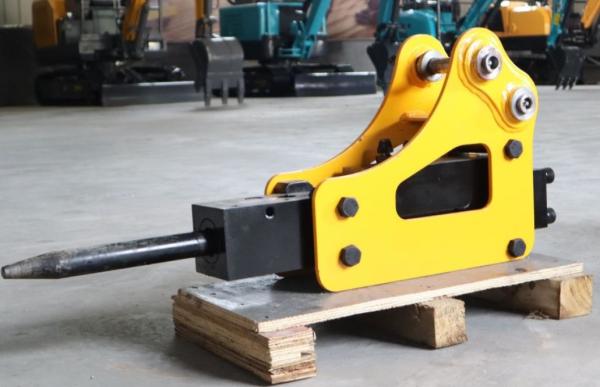

    High Strength Steel Backhoe Type Excavator Breaker Hammer Drilling 1700mm CE

    Ask Lasest Price
    Price : Negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 1000 Piece/Pieces per Week
    Delivery Time : 5-8 work days
    Brand Name : Wakestone
    • Product Details
    • Company Profile

    High Strength Steel Backhoe Type Excavator Breaker Hammer Drilling 1700mm CE

    High Strength Steel Backhoe Type Excavator Breaker Hammer CE CertifiC-A-Tion


    Product Description
    Hydraulic breakers mainly include six types: Side Type,Top Type (Open type), and Silenced-box Type,backhoe Type,skid-steer Type,post driver Type

    Please click here to tell us which type you need.

    1) Easy maintenance, only need a small amount of wearing parts inventory.

    2) High quality.Our quality and strike strength can be compared with European, Japanese and Korean hydraulic breakers.

    3) Low price.The price is 30%~60% of the European, Japanese and Korean hydraulic breakers.

    4) We produce various types of Korea and Japan hydraulic breakers, which are suitable for all kinds of excavators.

    5) Good raw material with strictly heat treatment processor.

    6)Strict material selection, processing and assembly process, 100% quality inspection and strike test before delivery

    7) With ISO & CE certifiC-A-Tion, our HMB hydraulic breakers have been accepted by more than 50 countries in the world.


    model
    unit
    DEHN1400
    DEHN1550
    DEHN1650
    DEHN1750
    operation weight(side/top/box)
    kg
    1774/2059/1866
    2577/2745/2968
    2751/3156/2916
    3905/4057/3902
    length(side/top/box)
    mm
    2480/2866/2793
    2776/3102/3075
    2820/3285/3337
    3184/3812/3723
    working flow rate
    1iter/min
    120-180
    180-240
    200-260
    200-260
    oil relief pressure
    kg/cm²
    210
    230
    240
    240
    working pressure
    kg/cm²
    160-185
    170-200
    160-180
    180-200
    impact rate
    bpm
    350-500
    300-450
    250-400
    200-350
    chisel diameter
    mm
    ¢140
    ¢1550
    ¢162
    ¢1750
    oil pipe nominaldiameter
    inch
    1
    1
    5/4
    5/4
    back head pressure
    kg/cm²
    16±0.5
    16±0.5
    16±0.5
    16±0.5
    Accumulator pressure
    kg/cm²
    60
    60
    60
    60
    Applicable Excavator weight
    ton
    18-26
    27-36
    30-40
    35-40
    Applicable Bucket
    0.9-1.2
    1.0-1.4
    1.6-2.2
    1.6-2.2
    Value Position
    internal
    internal
    internal
    internal

    Side Type Breaker
    1. Reducing total-length
    2. More easier to handle
    the breaking objects
    3. low maintenance.


    Top Type Breaker


    1.Easy-operating to achieve excavation work
    2.Without side weight, reducing the rate of chisel breakage
    3.longer total-length and heavier total-weight


    Silence Box Type Breaker


    1.Low noise level
    2.Full-closed bracket protects
    main body from damage.
