    62HRC Floating Oil Seal

    Ask Lasest Price
    Brand Name : Wakestone
    Model Number : Wakestone
    Payment Terms : L/C, T/T
    Supply Ability : 10000
    Delivery Time : 3 workdays
    • Product Details
    • Company Profile

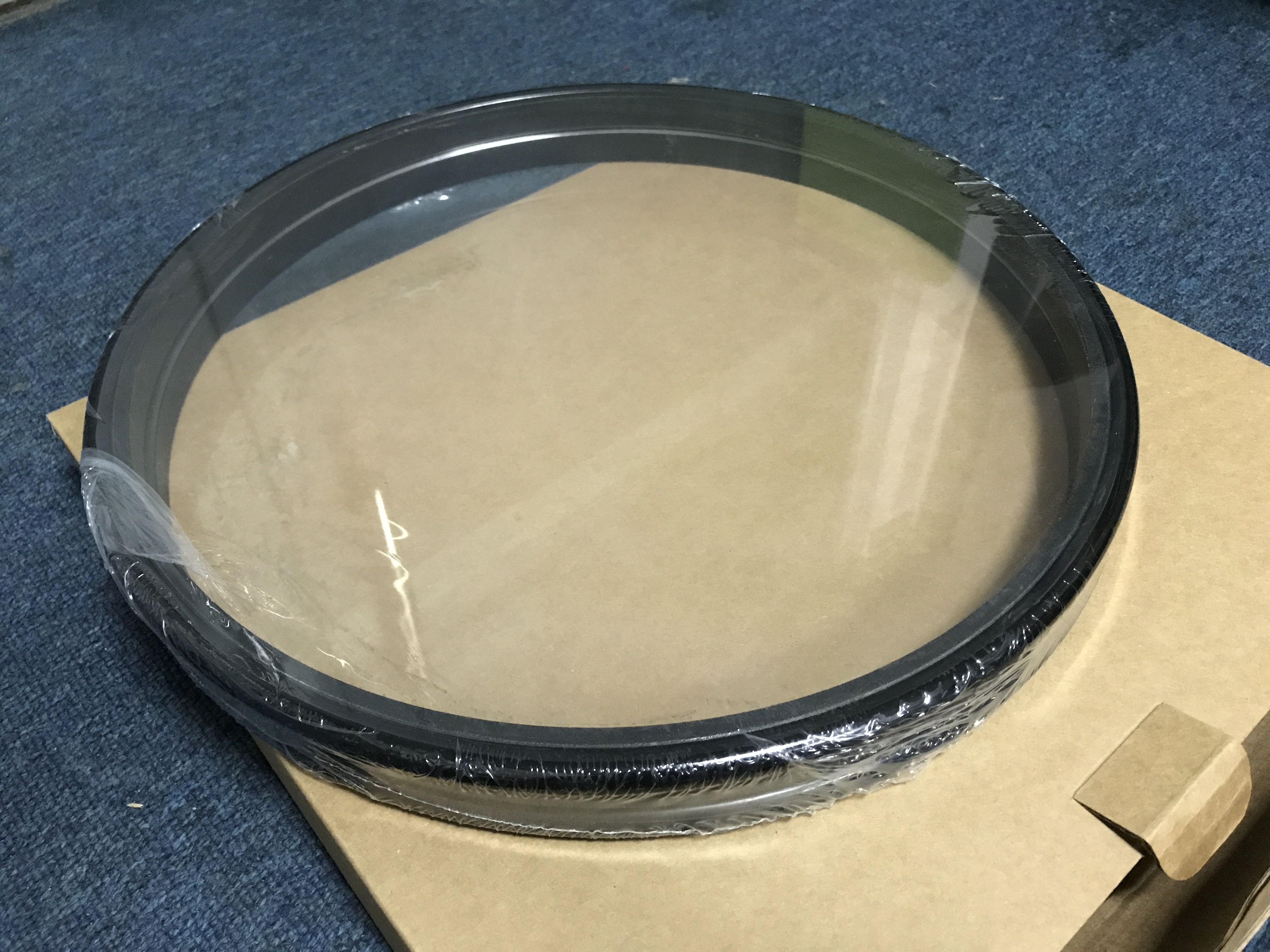

    62HRC Floating Oil Seal

    Oil Seal Group Excavator Final Drive Seal Floating Oil Seal For PC400, VLV360, EX400


    1.Description:

    *Oil seal group Excavator final drive seal group
    2.Floating seal Application Fields

    *Construction equipment

    *Excavator

    *Bulldozer

    *Sortingmachine

    *Skidder

    *Dump truck

    *Wheel loader

    *Hydraulic equipment

    *Hydraulic cutter*Tunnel excavator


    3.Material

    *Rubber+SPCC


    4.Details & Advantage

    *Design a reliable.

    *Effective packer outside dust, water, dirt and protected within the lubricating oil and grease.

    *Low cost, high efficiency.

    *Longer service life.


    5.Installation:

    a).Completely clear cavity and seal, remove oil, dirt, grease, metal debris such as residue.

    b).Only can remove the seal from the packaging before installation, so that we can prevent damage of grinding surface.

    c).Confirm whether the rubber ring close to the metal rings inside of the edge.

    d).Installing half seals into the chamber (rubber ring and metal ring), and then check the position of seals, rubber rings must be parallel to the bottom of the cavity.

    e).After installed the half seal, use Lint-free cloth to wipe the two metal surfaces, applied in a thin layer on the sealing surface of the film (the internal use of oil), pay attention only to lubricate the seal surface.

    f).Put on the other half ,then check whether it is up to specification.


    Specification


    TypeInner Dia.Outer Dia.Rubber Dia.Thickness
    1Wakestone3870387415419.538
    2Wakestone381038140541240
    3WakestoneG3660366394400.738
    4Wakestone356035638139038
    5Wakestone340033836837540
    6Wakestone335033536837340
    7Wakestone3180318347352.238
    8Wakestone298029832833342
    9Wakestone294029432833340
    10Wakestone284AB250277284.622
    24728413
    11Wakestone2800280310315.540
    12Wakestone275027530330838
    13Wakestone265026529329838
    14Wakestone2600AB209234242.621
    21626013.5
    15Wakestone2600A26028829840
    16Wakestone260026028829540
    17Wakestone2500250277284.644
    18Wakestone249AB250277284.622
    24829013
    19Wakestone240023926827740
    20Wakestone2390239268274.242

    62HRC Floating Oil Seal62HRC Floating Oil Seal
